Promac GH-2060ZH-T-QC Precision Lathe 400v
Product Code: PRO/GH-2060ZH-T-QC
Brand: Promac
Low Stock - Contact Us For Availability
£33,183.60 Inc. VAT
£27,653.00 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities

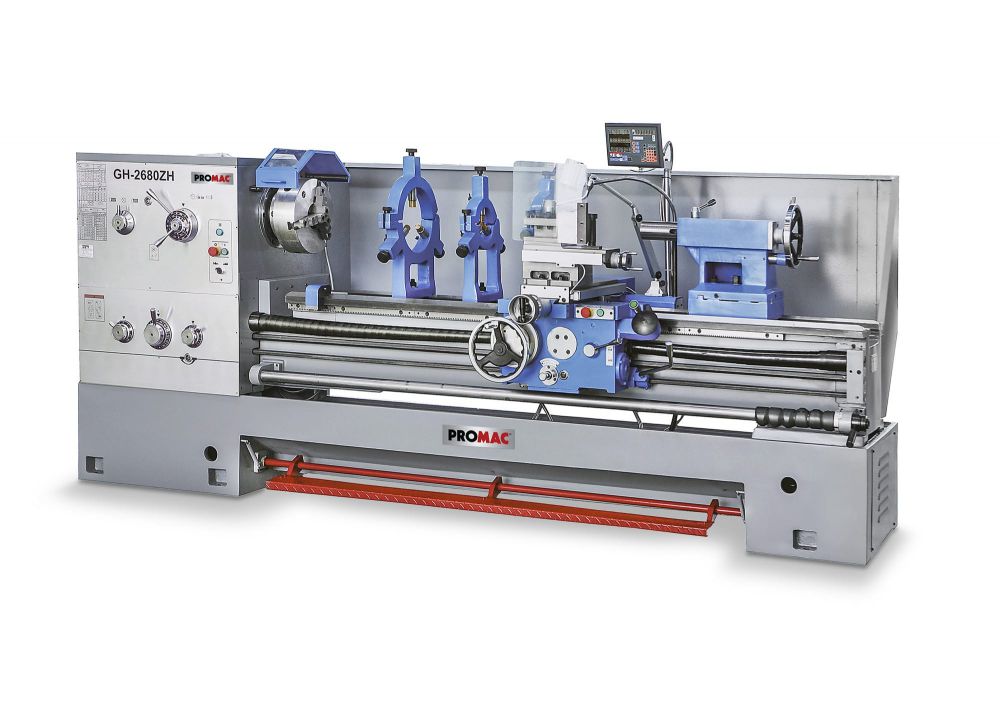

Promac GH-2060ZH-T-QC Precision Lathe 400v
Key Features
- Prismatic frame made of gray-cast iron, induction hardened
- Smooth start
- Hardened and ground gears
- Equipped with monitoring function for 3 axes (X, Y, Z)
- Incl. emergency stop switch
Technical details
- Motor (V/kW) 400/7.5
- Center height (mm) 250
- Center distance (mm) 1’530
- Swing over bed (ø-mm) 500
- Swing over carriage (ø-mm) 720
- Spindle bore (mm) 80
- Morse taper of headstock MT7
- Spindle taper CAMLOCK D1-8 (DIN 55029)
- Speed range (min-1) 9–1’600
- Cross slide, stroke (mm) 310
- Top slide, stroke (mm) 145
- Range of metric threads (mm) 1.0-224
- Longitudinal feed (mm/U) 0.063-6.43
- Crossfeed (mm/U) 0.027-2.73
- Morse taper of tailstock MT5
- Max. tool size (mm) 32
- 3-jaw chuck (mm) 250
- Dimensions (mm) 2’500×1’280 ×1’300
- Weight (kg) 3’000
