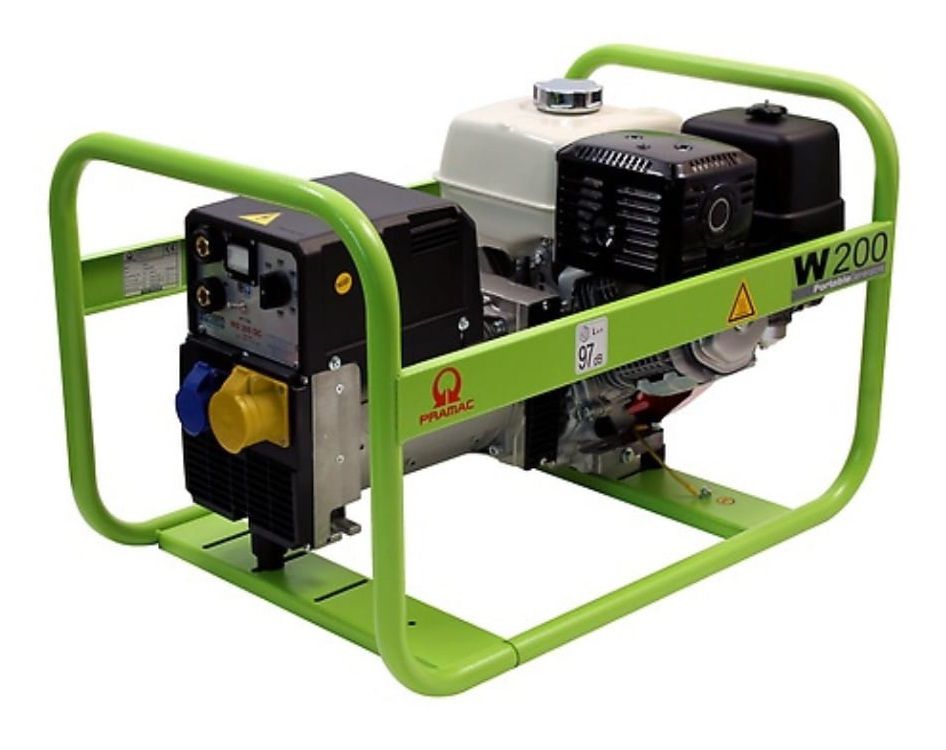

Pramac W200 DC Motor Welding Petrol Generator 230V/115V 5kva - W200DC

Pramac W200 DC Motor Welding Petrol Generator 230V/115V 5kva

ref: W200DC / LA200CH1000

Pramac W200 mechanic welder generator provides reliability and sturdiness for all your particular needs.

• Welding current A: A 40-200
• Min/Max welding voltage: V 21.6 / 28.8
• Welding service at 60% A: A 170

Max diameter of the electrode:

• Rutile: mm 5
• Basic: mm 5
• Cellulose: mm 5

Control Panel:
Selector (8X2 position) allows to change welding current

• 1 x CEE 230V 16A IP44
• 1 x CEE 115V 32A IP44

Welder Parameters

• Welding current A: 40-200
• Min/Max welding voltage V: 21.6 / 28.8
• Welding service at 60% A: 170

Max diameter of electrode

• Rutile mm: 5
• Basic mm: 5
• Cellulose mm: 5

Power Specifications

• Voltage V: 230/115
• Frequency Hz: 50
• Power factor cos ϕ: 0.9

Power

• Single phase Maximum Power kW/kVA: 3.9 / 4.3
• Single phase power COP kVA: 3.6

Engine specifications

• Engine Brand: Honda
• Model: GX390 Recoil
• Version: 50 Hz
• Engine cooling system: Air
• Displacement cm³: 389
• Aspiration: Natural
• Speed governor: Mechanical
• Prime gross power PRP kW: 6.6
• Maximum gross power LTP ESP kW: 7.7
• Oil capacity l: 1.1
• Fuel: Petrol
• Specific fuel consumption 75% PRP g/kWh: 313
• Starting system: Recoil

Consumption

• Consumption at 75% of load l/h: 2.2
• Fuel tank capacity l: 6.1
• Running time at 75% COP: h 2.8

Noise emission

• Guaranteed noise level (LWA) dB(A): 97
• Noise level at 7 m dB(A): 72

Dimensions and weight

• Length (L) mm: 875
• Width (W) mm: 620
• Height (H) mm: 600
• Dry weight kg: 80

Control Panel

• Selector (8X2 position) allows to change welding current: Standard
• 2P+T CEE 230V 16A IP44: 1
• 2P+T CEE 115V 32A IP44: 1

Alternator and socket protection

• Electric protection: IP 23
• Socket protection: IP 44
