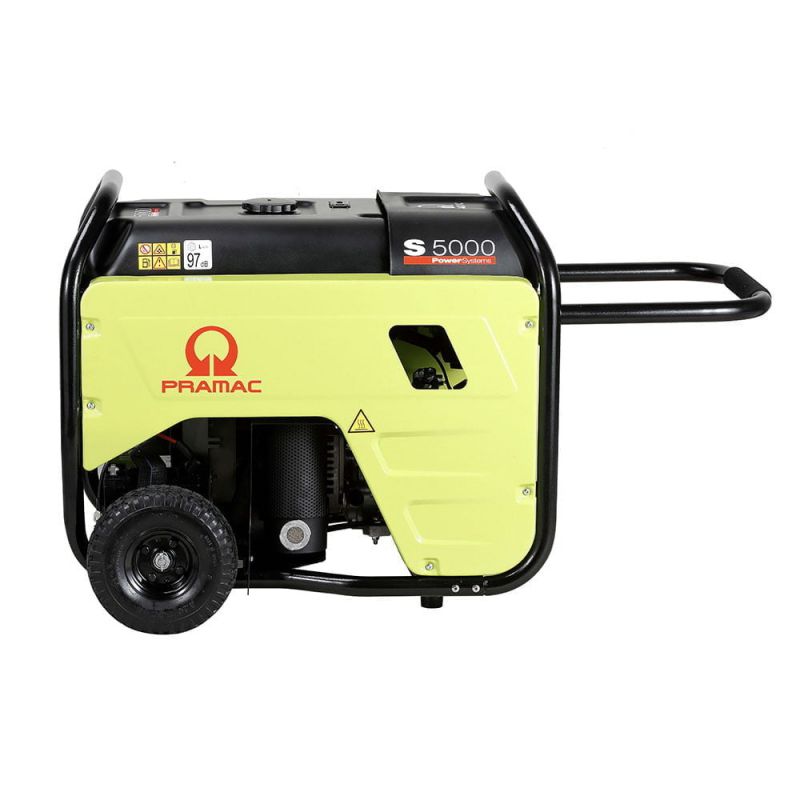

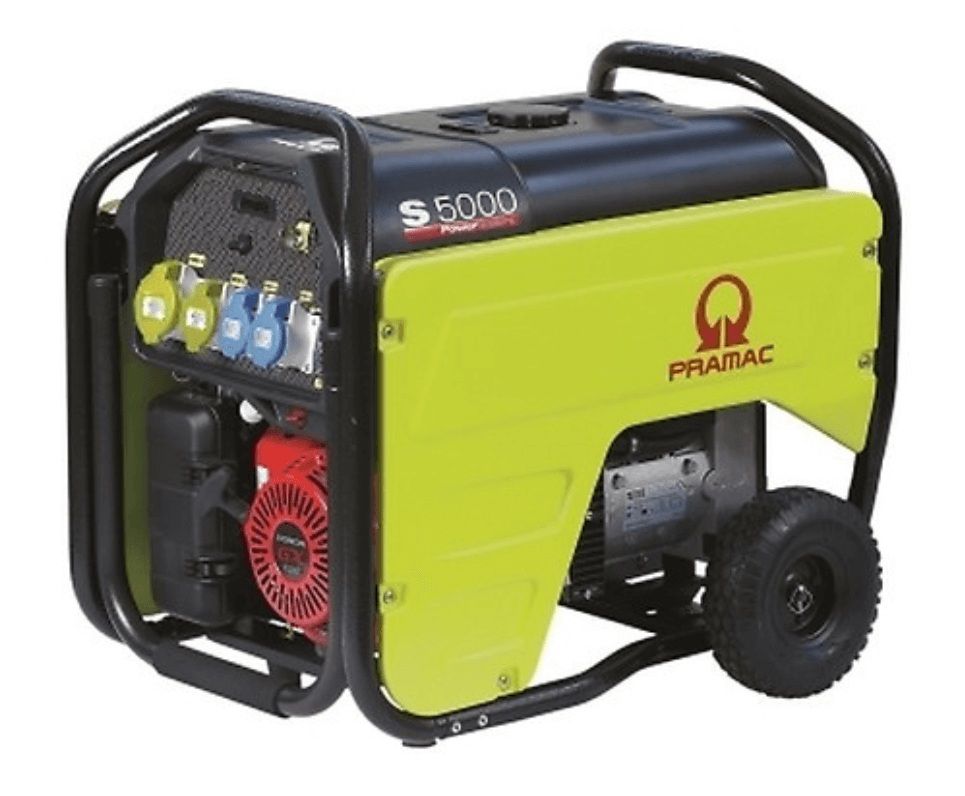

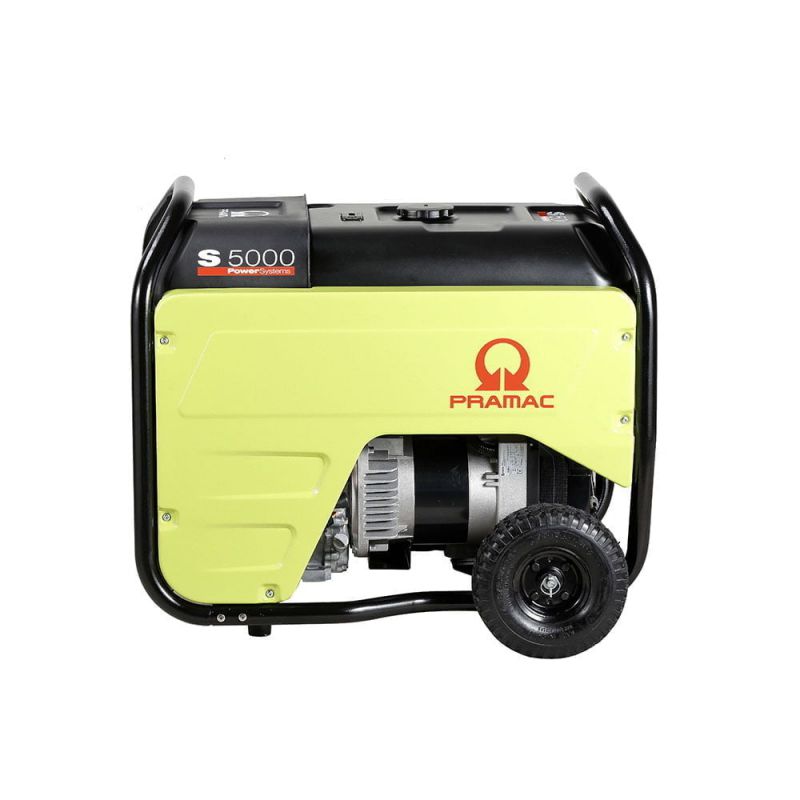

Pramac S5000 Portable Petrol Generator 115V/230V 5.3kva - S5000-230/115

Pramac S5000 Portable Petrol Generator 115V/230V 5.3kva

ref: S5000-230/115 / PD412SH2Z06

• Pramac S5000: A strong generator perfect for intensive use. It has all the features of a top class product including a powerful engine and a strong and modern design.

A portable generator produced with high-quality components that offer you the solutions for your professional needs. Includes:

• Practical quick user’s instructions leaflet on the front panel
• Integrated transport kit

Control Panel:

• Selector switch with key: OFF – ON-START
• Pushbutton Choke

Instrumentation:

• Voltmeter
• Hours-meter
• Frequency meter
• Fuel gauge

Output:

• Battery Charger 12V DC

Sockets:

• 1 x CEE 115V 16A IP44
• 1 x CEE 115V 32A IP44
• 2 x CEE 230V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 115/230
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 5.3
• Emergency Standby Power ESP kW: 4.8
• Continuous power COP kVA :4.2
• Continuous power COP kW: 3.9

Engine specifications

• Engine Brand: Honda
• Model: GX270 Electrical
• Engine cooling system: Air
• Displacement cm³: 270
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Electric

Alternator Specifications

• Brushless
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Capacitor

Dimensional data

• Length (L) mm: 840
• Width (W) mm: 615
• Height (H) mm: 753
• Dry weight kg: 89
• Fuel tank capacity l: 27

Autonomy

• Fuel consumption at 75% of Load l/h: 1.67
• Fuel consumption at 100% of Load l/h: 2.22
• Running time at 75% of load h: 16.17
• Running time at 100% of load h: 12.16

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
