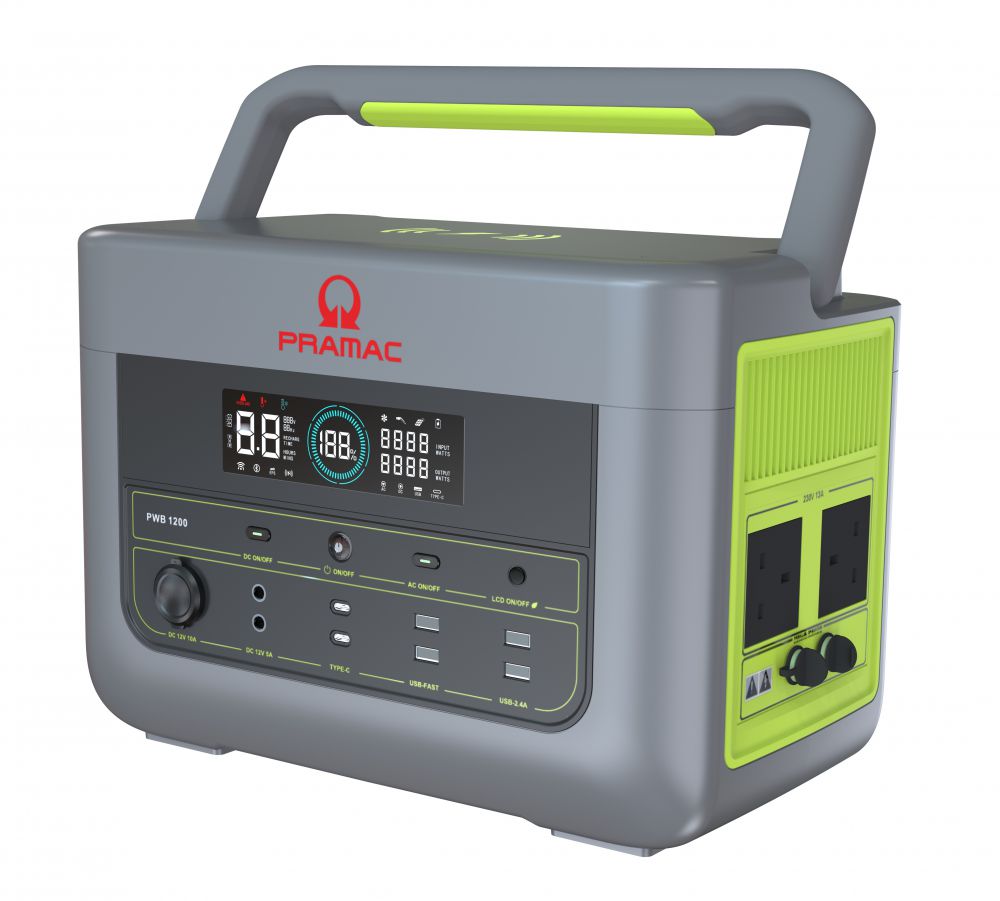

Pramac PWB 1200 Portable Battery Pack / Power Station 1200w - PWB1200-230

Pramac PWB 1200 Portable Battery Pack 1200w

ref: PWB1200-230 / KA162Y1102U

PWB Portable Power Station is a universal Battery Energy Storage system ideally suited to a range of applications, delivering reliable power in the most cost effective and environmentally sensitive way. Energy stored within the unit is converted electronically into AC power. Power can be stored from connection to the grid, from a generator or solar PV to ensure the most efficient, lowest maintenance and best environmental impact is achieved. Real time monitoring is provided by on board display to ensure an efficient usage.

• Li-Ion LFP battery module
• Wireless Charger
• Solar Charging
• Fast Charging integrated 1h 80%
• Parallel Connector
• EPS Emergency power supply

Output specifications

• Output power (Continuous) watt: 1200
• Output power peak (1.5s) watt: 2400
• Frequency Hz: 50
• Voltage V: 230
• Phase (s): 1

Battery specifications

• Battery (Type): Li-Ion LFP
• Battery rated Voltage VDC: 25.6
• Battery design life @80% DoD cycles: 2000
• Battery Nominal capacity (sizes) W/h: 1075

Input specifications

• Max single-phase input W 800
• a) Charging Times @80% h 1
• b) Charging Times @100% h 2
• Max DC Solar Charging W 400
• a) DC/Solar Charging Times @80% (with 400W of solar panels and best solar lighting condition) h 2.1
• b) DC/Solar Charging Times @80% (with 200W of solar panels and best solar lighting condition) h 4
• Car lighter charging (12V DC) A 8
• Car lighter charging time @80% h 11

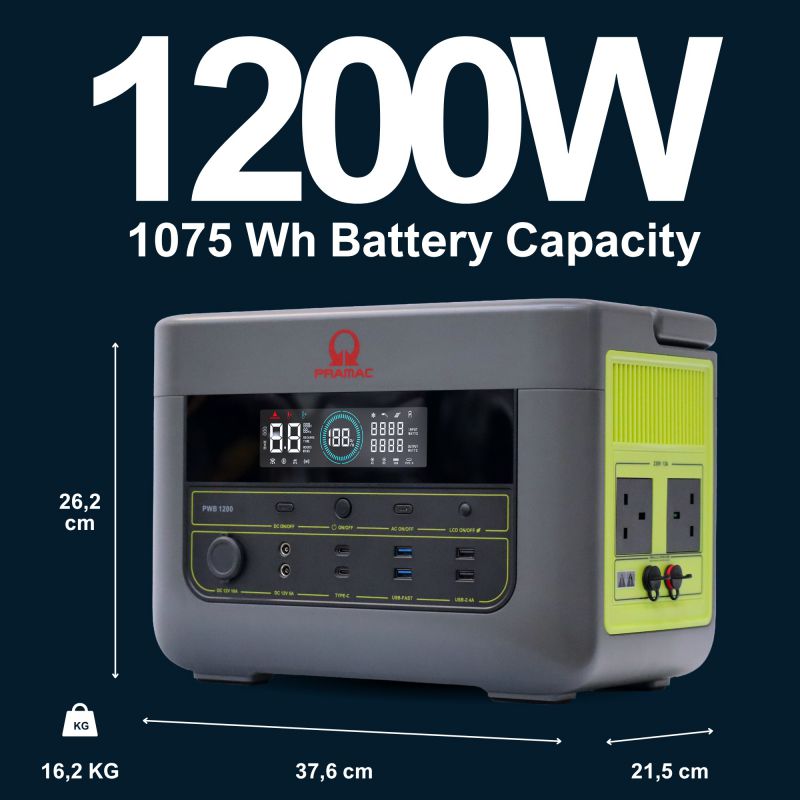

Installation data

• Length (L) mm 376
• Width (W) mm 215
• Height (H) mm 262
• Weight kg 16

Output:

• 230V BS1363 (13A) IP44 - 2
• Car socket (DC 12V/10A) - 1
• DC 6514 (12V/5A) - 2
• USB-A 12 W Max (5V/2.4A) - 2
• USB-A Quick 24W Max (5/9/12V 3/2.2/2 A) - 2
• USB-C 100 W Max (5/9/12/15/20V 3/5A) - 2
• Wireless charger - 1
