Pramac PMD 5000s Portable Diesel Generator 230V 5kw - PMD5000s-230

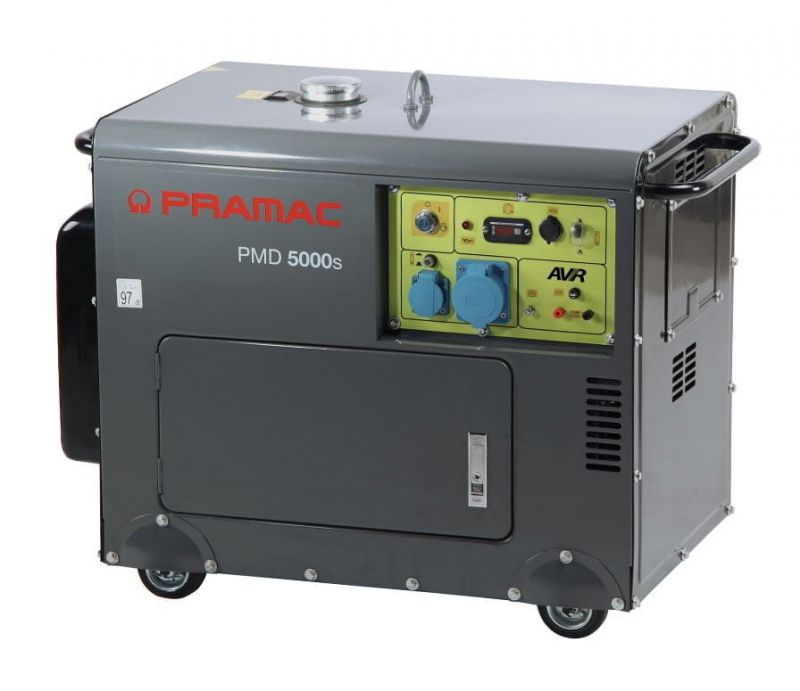

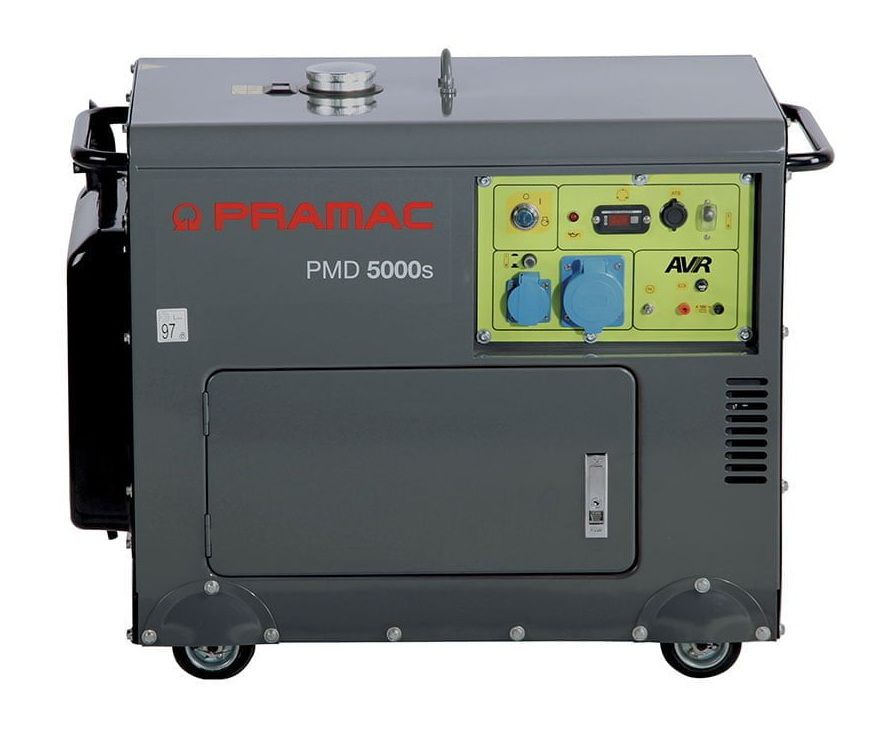

Pramac PMD 5000s Portable Diesel Generator 230V 5kw

ref: PMD5000s-230 / PR452SXAY00

• Pramac PMD 5000S: A portable diesel generator for home backup use. It provides long lasting power in case of a sudden power outage. Get low noise and low operating costs for maximum comfort!
• Equipped with an OHV engine which provides consistent power for multiple applications.
• Handles and wheels kit integrated for easy transportation.

Control Panel:

• Selector switch: OFF – ON
• Digital Display: Voltmeter, Frequency meter, Hours-counter
• Protections: Thermal magnetic braker, oil guard (with lamp)

Sockets:

• 1 X SCHUKO 230V 16A IP44
• 1 X 2P+T CEE 230V 32A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Phase: 1
• Max Power Watts: 5000
• Rated Power Watts: 4500

Engine specifications

• Engine Brand: Pramac
• Type: OHV
• Operating Speed Nominal rpm: 3000
• Fuel: Diesel
• Starting Systems: Electric
• Oil capacity l: 1.65
• Low Oil Shutdown: yes

Alternator Specifications

• Voltage regulation system: AVR

Dimensional data

• Length (L) mm: 910
• Width (W) mm: 518
• Height (H) mm: 682
• Dry weight kg: 165

Autonomy

• Fuel tank capacity: 14.5
• Fuel consumption 50% 1/h: 1.28
• Running time 50% h: 11.3

Noise level

• Guaranteed noise level (LWA) dB(A): 97

Genset Control:

• COMMANDS  ● Start selector switch with key: OFF - ON - START
• INSTRUMENTATION: ● Voltmeter ● Hours-counter ● Frequency meter ● Fuel gauge
• PROTECTIONS ● Thermal Magnetic breaker ● Oil Guard (with lamp) ● Fuse 9A (12V DC)
• OUTPUT: ● Battery Charger 12V DC ● PE screw ● Connector for ATS (Accessory available)
• SOCKET TYPE: SCHUKO 230V 16A IP44 1, 2P+T CEE 230V 32A IP44 1
