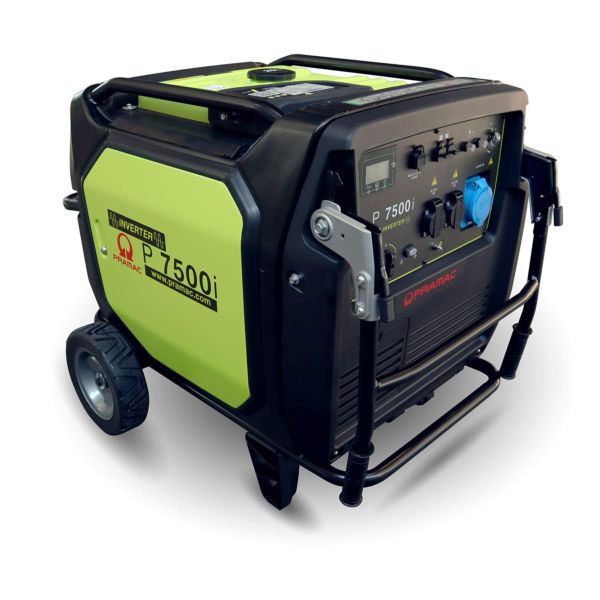

Pramac P7500i Petrol Inverter Generator 230V 6.5kva - P7500i-230

Pramac P7500i Petrol Inverter Generator 230V 6.5kva

ref: P7500i-230 / PF752SXB000

• Inverter technology: stable power for safe operation of sensitive electronics.
• OHV engine provides consistent power for multiple applications.
• Low-oil level shutdown automatically safeguards engine from damage.
• Economy mode automatically adjusts the engine speed to the optimum level to provide excellent fuel economy and noise reduction.
• USB ports charges your mobile electronics so you can stay connected.

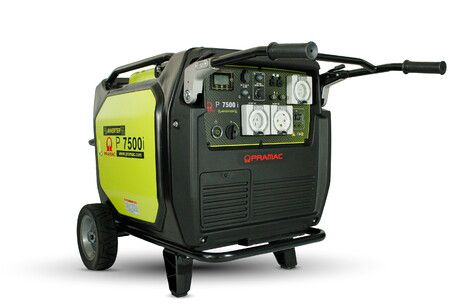

• Compact and Solid Canopy Easily transportable by handle.
• Ideal for applications requiring low noise
• Connector for Parallel kit
• Oil Bottle, Funnel and Plugs Included in the carton box

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Phase: 1
• Max Power Watts: 7000
• Rated Power Watts: 6500

Engine specifications

• Engine Brand: Pramac
• Type: OHV
• Exhaust emission level: Stage V
• Operating Speed Nominal rpm: Variable
• Fuel: Petrol
• Starting Systems: Electirc (+Recoil)
• Oil capacity l: 1.45
• Low Oil Shutdown: yes

Alternator Specifications

• Voltage regulation system: Inverter

Dimensional data

• Length (L) mm: 950
• Width (W) mm: 765
• Height (H) mm: 773
• Dry weight kg: 146

Autonomy

• Fuel tank capacity: 25
• Fuel consumption 75% 1/h: 2.25
• Running time 75% h: 11

Noise level

• Guaranteed noise level (LWA) dB(A): 92
• Noise pressure level @ 7 m dB(A): 64

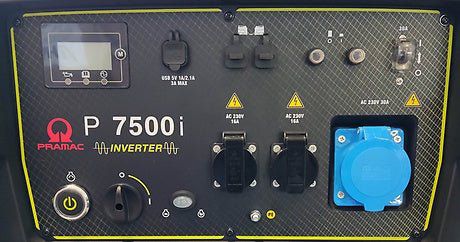

Genset Control:

• COMMANDS / INSTRUMENTATION ● Selector switch: O/I Power Button ● Economy mode automatically adjusts the engine speed to the optimum level to provide excellent fuel economy and noise reduction. ● Parallel kit connection ● Outputting energy (light - Green) ● Overloading and Oil alarming (light - Red) ● Voltmeter / Hourmeter / Frequency meter / Fuel Gauge ● 2 WIRE START Connection The two-wire start system is a simple and efficient way to power a generator without the need for additional components. It is able to activate and stop the generator by closing and opening the relè manually or throght the inverter that decects the deficiency of primary source of energy. This system can be integrated with photovoltaic installations to automatically start the generator when energy is insufficient. PROTECTIONS ● Over-load, Oil Guard, Short Circuit, High temperature, Over-speed protections ● Protection Control panel IP 4
