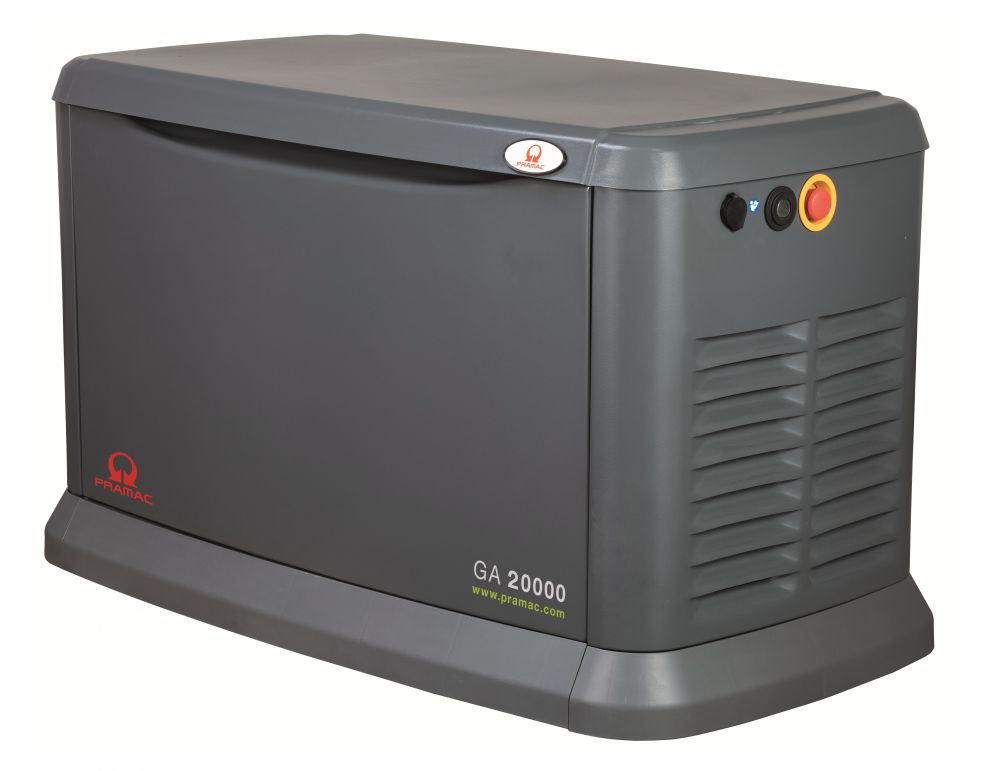

Pramac GA 20000 Powerknight Air-Cooled GAS Standby Generator 20kw - GA20000

Pramac GA 20000 Powerknight Air-Cooled GAS Standby Generator 20kw

ref: GA20000 / PS203TXM000

The reliable solution to protect your home and business from power outages

Protect your home, family and business with a Powerknight automatic standby generator and keep life going without disruption. From essentials like heating, cooling and lights, to daily necessities like cooking, laundry and the kid’s bath-time, our lives run on electricity.

• Weather protective Aluminum Enclosure: Sound attenuated enclosures ensure quiet operation and protection against mother nature, withstanding winds up to 240km/h. Hinged key locking roof panel for security. Lift-out front for easy access to all routine maintenance items. Electrostatically applied textured epoxy paint for added durability.
• GENERAC G-FORCE OHV Engine
• Fuel: Natural Gas or LP Gas Operation
• Electronic Governor
• True Power™ Electrical Technology
• Two Line LCD Multilingual Digital Evolution™ Controller
• System Status & Maintenance Interval LED Indicators
• Flexible Fuel Line Connector
• Wi-Fi communications standard
• Free Mobile Link™ Wi-Fi Remote Monitoring through App
• 5 Year Limited Warranty

PERFORMANCE

• Stand By Power [ESP] (Liquid Propane) VA: 20000
• Stand By Power [ESP] (Natural Gas) VA: 17000
• Frequency Hz: 50
• Voltage V: 400
• Phase: 3
• Power factor cos ϕ: 0.8

Engine specifications

• Engine Brand: Generac
• Model: G-FORCE 1000 SERIES
• Type: OHV
• Engine cooling system: Air
• Nr. of cylinder and disposition: 2 V angle
• Displacement cm³: 999
• Compression Ratio: 9.5:1
• Starting system: Electric
• Electric circuit V: 12
• Speed governor: Electronic
• Operating Speed-Nominal rpm: 3000
• Oil capacity l: 1.8
• Fuel: Natural Gas or LP Gas
• • Natural Gas: Fuel consumption 50% m³/h: 4.50
• • Natural Gas: Fuel consumption 100% m³/h: 7.02
• • Liquid Propane Gas: Fuel consumption 50% l/h: 6.83
• • Liquid Propane Gas: Fuel consumption 100% l/h: 10.86

Alternator Specifications

• Frequency Hz: 50
• Voltage regulation system: AVR
• Phases: 3
• Poles: 2

Data Current

• Max current (Liquid Propane) A: 28.87
• Max current (Natural Gas) A: 24.54
• Circuit breaker A: 32

Dimensional data

• Length (L) mm: 1232
• Width (W) mm: 648
• Height (H) mm: 733
• Dry weight kg: 220

Noise Level

• Guaranteed noise level (LWA) dB(A): 95
• Quiet-Test Mode dB(A): 59
