Pramac ES8000 Portable Petrol Generator 230V 7.2kva - ES8000-230

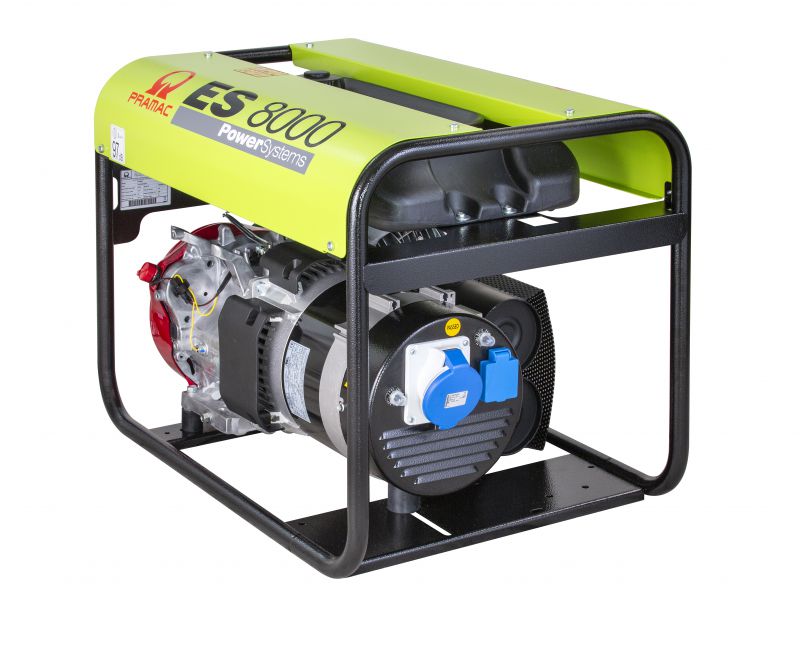

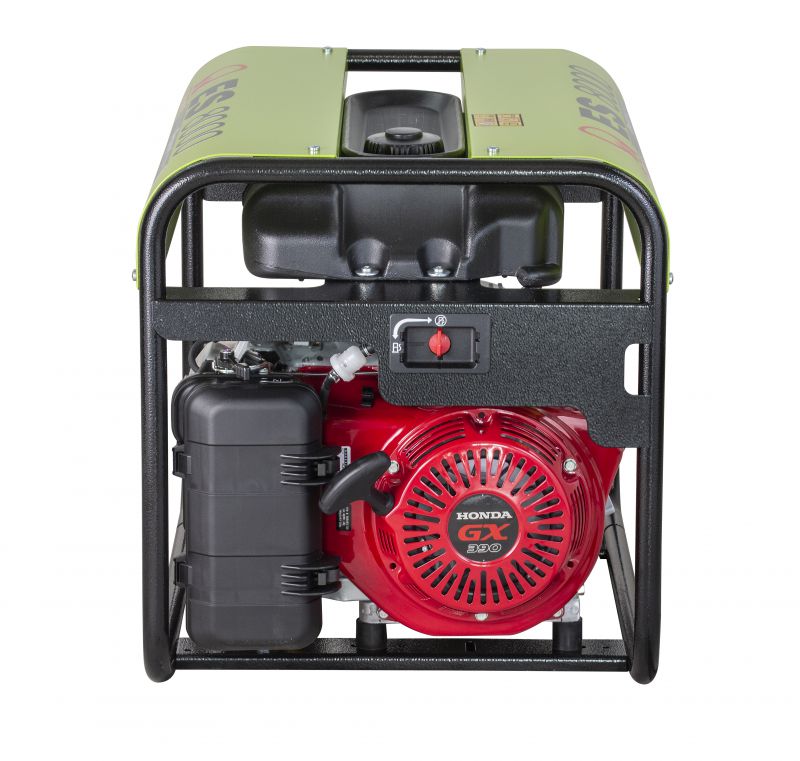

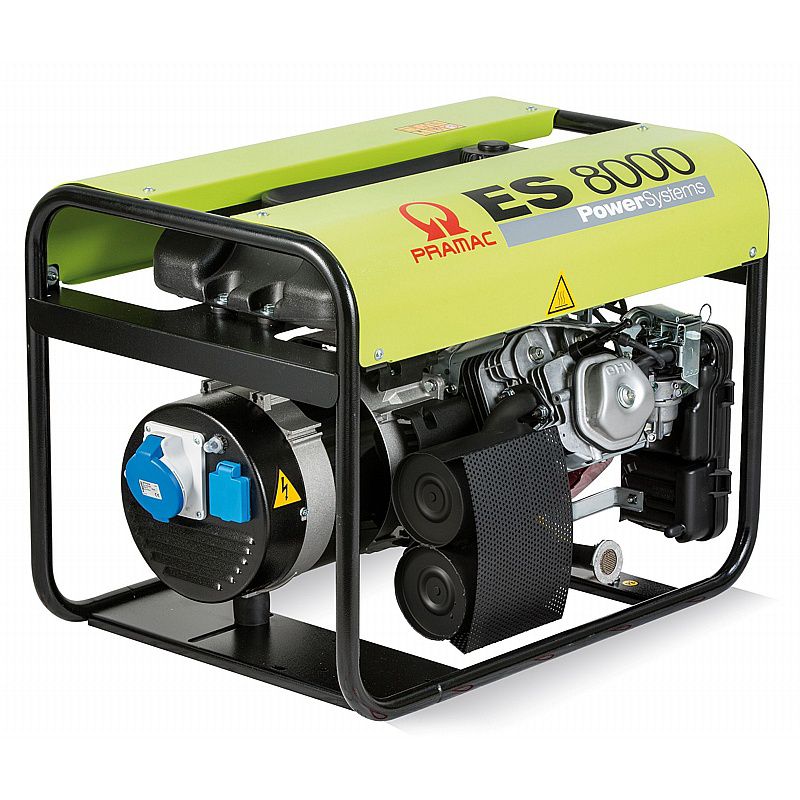

Pramac ES8000 Portable Petrol Generator 230V 7.2kva

ref: ES8000-230 / PE612SH1009

• Pramac ES8000: This design is for those who need a powerful generator. It is easy to use and carry for professional activities.

This generator has a basic configuration and provides a long lasting professional power supply. It is a light generator with a generous fuel tank. Includes:

• Professional GX Honda engine.
• Recoil starting system.
• Super silent muffler.
• Long running fuel tank.

Control Panel:

• Selector switch OFF – ON to start the engine
• Fuel tap for easy storage
• Choke lever
• Protections: thermal protection, oil guard

Sockets:

• 1 x SCHUKO 230V 16A IP54
• 1 x CEE 230V 32A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 7.2
• Emergency Standby Power ESP kW: 6.4
• Continuous power COP kVA :6.0
• Continuous power COP kW: 5.5

Engine specifications

• Engine Brand: Honda
• Model: GX390 Recoil
• Engine cooling system: Air
• Displacement cm³: 389
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Recoil

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: AVR 520

Dimensional data

• Length (L) mm: 729
• Width (W) mm: 500
• Height (H) mm: 536
• Dry weight kg: 73
• Fuel tank capacity l: 11

Autonomy

• Fuel consumption at 75% of Load l/h: 2.16
• Fuel consumption at 100% of Load l/h: 2.87
• Running time at 75% of load h: 5.09
• Running time at 100% of load h: 3.83

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
