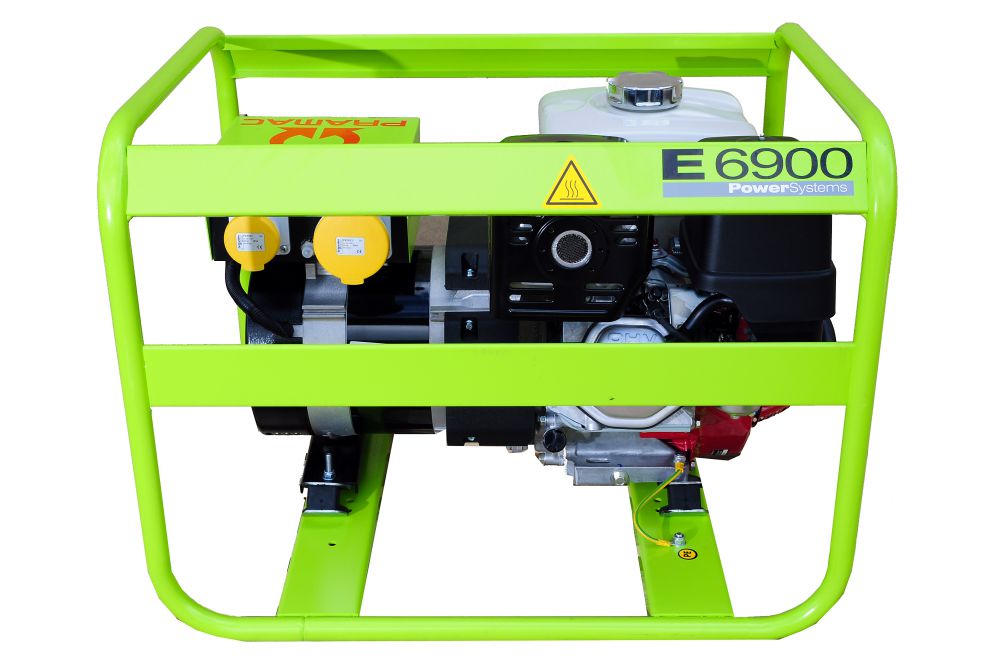

Pramac E6900 Portable Petrol Generator 230V/115V 7.1kva - E6900-230/115

Pramac E6900 Portable Petrol Generator 230V/115V 7.1kva

ref: E6900-230/115 / PA602SH1002

• Pramac E6900: A professional generator designed to ensure high performances. It is powerful and easy to maintain.

Easy to carry, the Pramac E6900 is a compact and powerful generator which is optimal for your professional performances. Includes:

• Robust protective tubular frame (roll bar).
• Professional GX Honda engine.
• Accessible for inspection and maintenance.
• Easy to transport.
• Start plug and work.

Control Panel:

• Selector switch: OFF – ON, Selector switch 115/230V
• Fuel Chock
• Protections: Thermal protection, Oil guard

Sockets:

• 1 x CEE 115V 16A IP44
• 1 x CEE 115V 32A IP44
• 2 x CEE 230V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230/115
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 7.15
• Emergency Standby Power ESP kW: 6.43
• Continuous power COP kVA :6.08
• Continuous power COP kW: 5.47

Engine specifications

• Engine Brand: Honda
• Model: GX390 Recoil
• Engine cooling system: Air
• Displacement cm³: 389
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.1
• Starting system: Recoil

Alternator Specifications

• Brushless
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Capacitor

Dimensional data

• Length (L) mm: 715
• Width (W) mm: 550
• Height (H) mm: 545
• Dry weight kg: 75
• Fuel tank capacity l: 6.5

Autonomy

• Fuel consumption at 75% of Load l/h: 2.14
• Fuel consumption at 100% of Load l/h: 2.87
• Running time at 75% of load h: 3.04
• Running time at 100% of load h: 2.26

Noise level

• Guaranteed noise level (LWA) dB(A): 97
• Noise pressure level @ 7 m dB(A): 69

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
