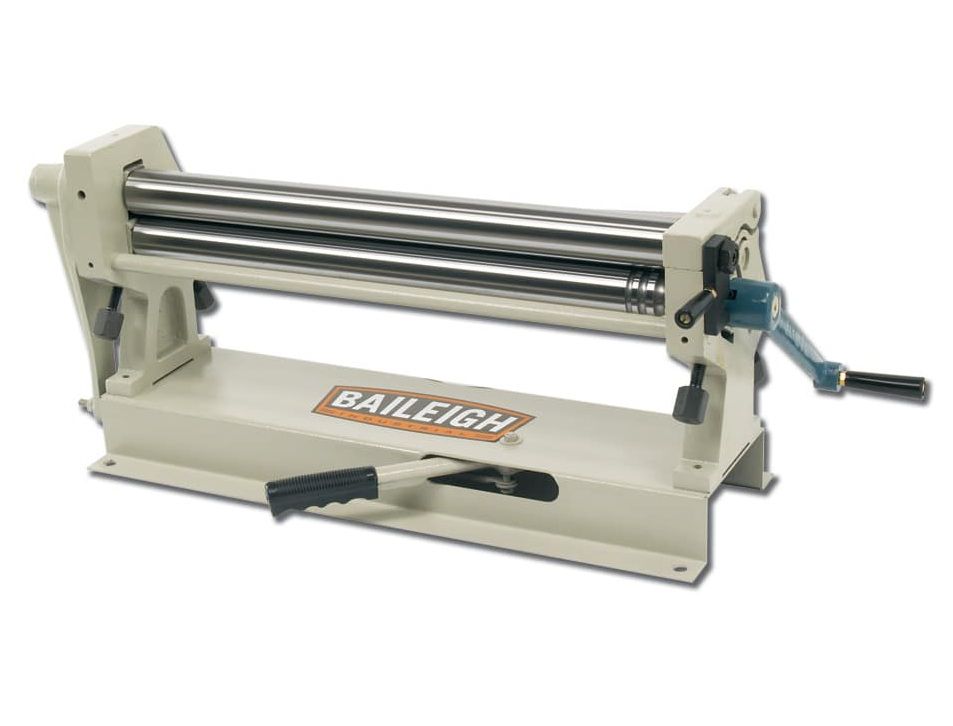

Baileigh SR-2420M Slip Roll 610mm

Baileigh SR-2420M Slip Roll 610mm

Small bench top slip rolls have their place in most fabrication shops. In a lot of cases, these compact machines are more efficient to use when working on smaller projects.

• The SR-2420M manual roll former fits that description perfectly.
• It has the capacity to roll 20 gauge mild steel over its entire 24 length.
• The SR-2420M, like all Baileigh Industrial slip rolls are built to last.
• It features a fully integrated frame that helps keep all three rolls in alignment to ensure the best possible results.
• It even incorporates a lever mechanism that helps open up the top roll when the form is complete.
• It even has three wire grooves for those jobs that require wire forming.
• 610mm forming width
• 1mm mild capacity
• Manually powered
• 3 wire grooves

• Item Number SR-2420M
• Country of Manufacture Taiwan
• Forming Width 610 mm
• Upper Roll Dia. 50.8 mm
• Minimum Forming Dia 76.2 mm
• Capacity (Mild Steel) 1 mm
• Gear Ratio 1:01
• Power Manual
• Shipping Weight 100 kgs.
• Shipping Dimensions (Inches) 1118 x 381 x 533 mm
