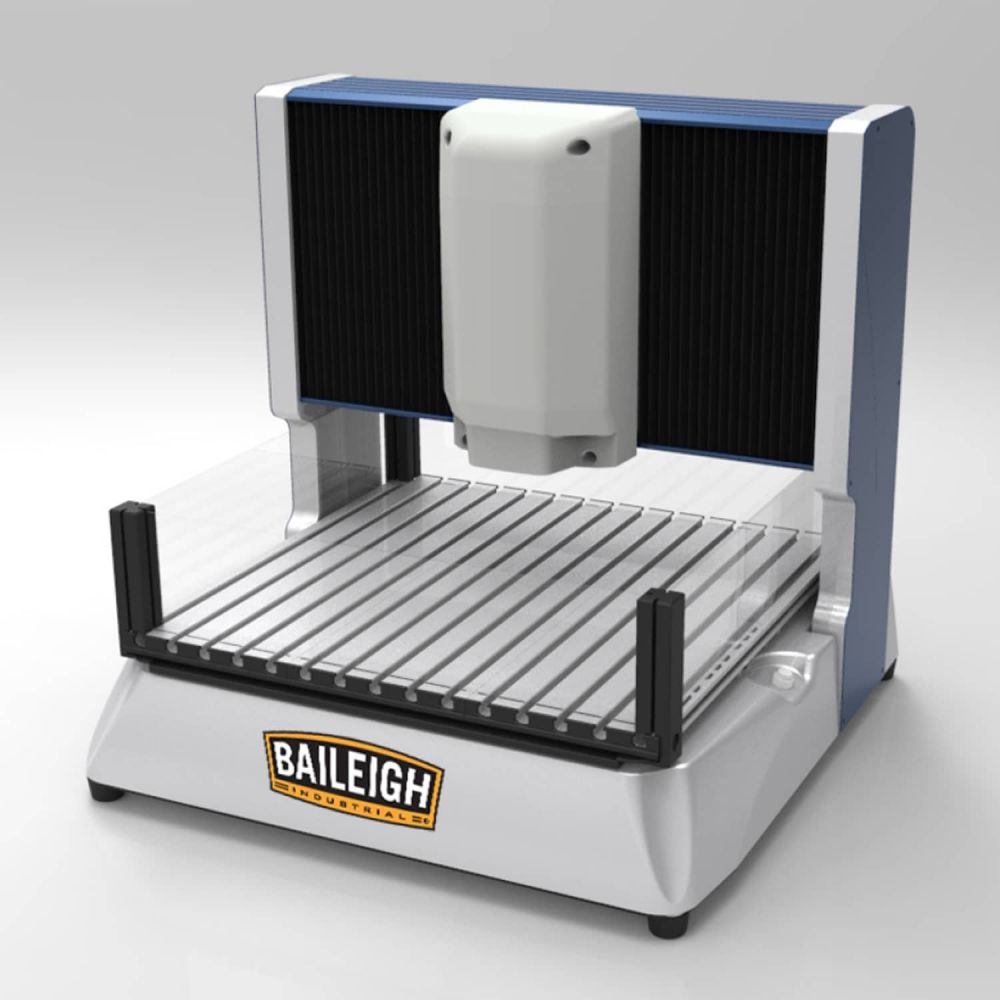

Baileigh DEM-1717 Desktop CNC Engraver

Baileigh DEM-1717 Desktop CNC Engraver

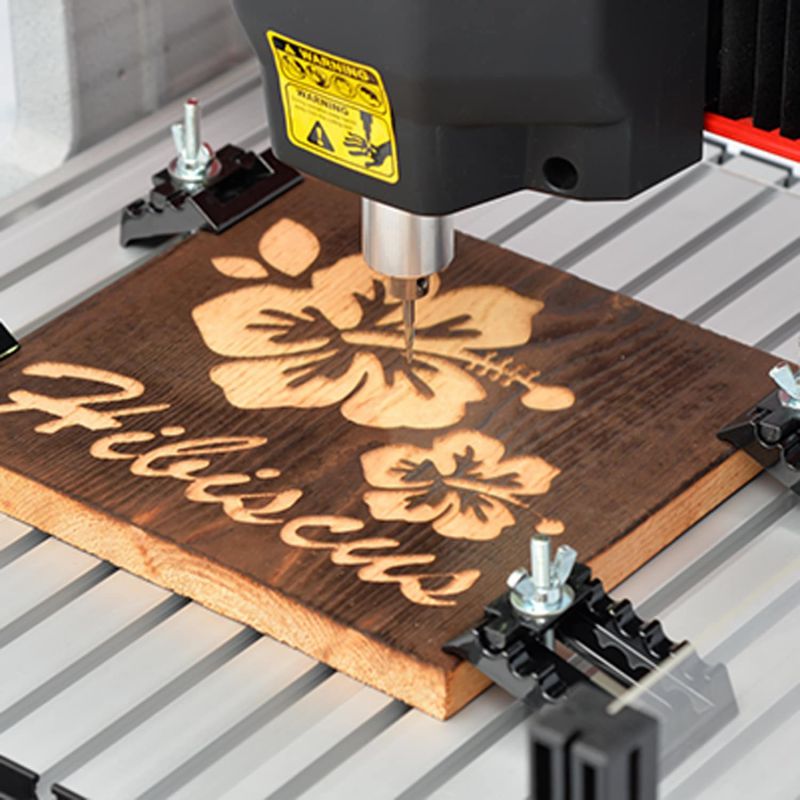

The DEM-1717 is a desktop CNC router that is not only for small woodworking projects, but also for acrylic, ABS lathophane, EVA foam, styrofoam, modeling wax, plastic and soft metal. It's able to carve products like tooling boards, toolboxes, tiny ornaments, and other pojects. The DEM-1717 and has also been used as teaching equipment in various high schools, and colleges worldwide. The DEM-1717 CNC router table comes with software, and tooling - often not included with competing tables that cost more.

• Built to last and the router arrives fully assembled.
• 305mm x 305mm working area.
• Recommended for sign-makers, and hobbyists.
• Powerful 200 watt DC Brushless Motor.Up to 17,000 rpm variable spindle speed.

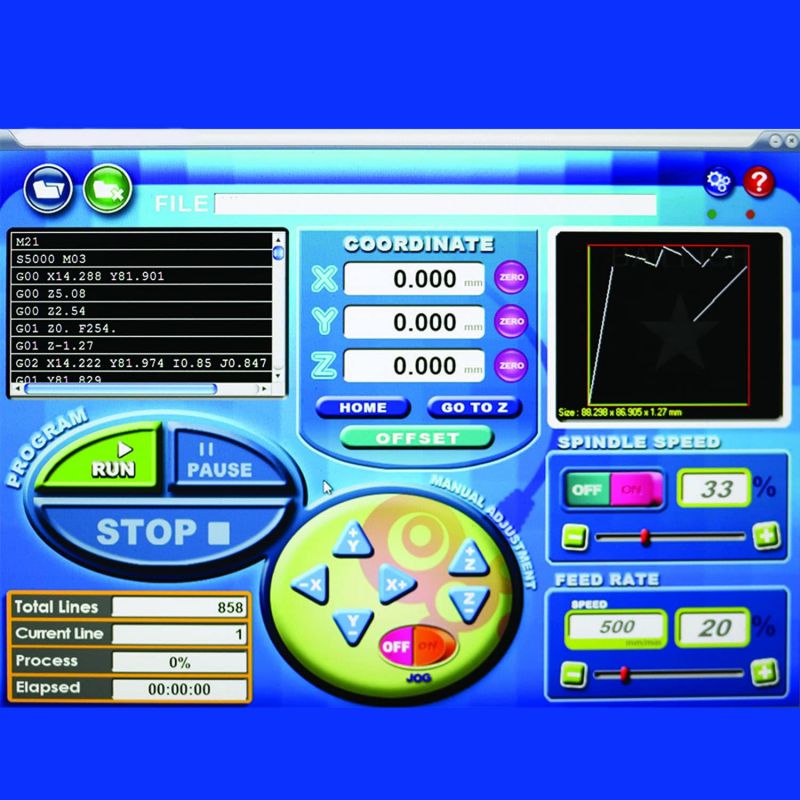

• Easy-to-learn software; just install it onto your computer and start working.

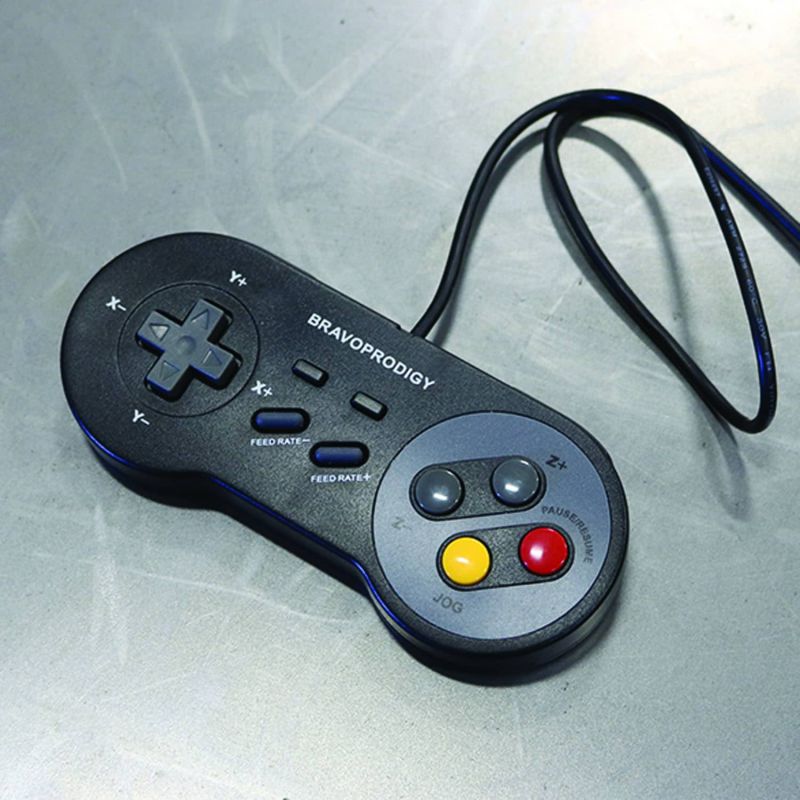

• Upload your design file to the table, then use the convenient handheld controller to move the spindle.
• Stepper motors move the spindle at a maximum speed of 98.43" per minute.
• Belt Drive X, Y, and Z axis movement for accurate positioning.
• ER-11 4.0 mm tooling diameters.
• 4 T-slotted clamps fit on the table to hold the material down for clean cuts.
• Structurally strong extruded aluminum table won't buckle under material weight or spindle pressure.
• The table ships pre-built with correct alignment for a fast and simple set-up - just an hour or so to uncrate the table and get started with the software.
• Covered by a 1-year parts warranty.
• 305mm x 305mm working area
• 0.02mm accuracy
• 240 volt power

• Item Number DEM-1717
• Actual Working Area 305mm x 305mm
• Speeds 0 – 20,000 rpm
• Z Axis Stroke 102mm
• Maximum Moving Speed (Inches Per Minute) 98.43
• Maximum Engraving Speed (Inches Per Minute) 98.43
• Reposition Accuracy 0.02mm
• Tool Diameters Collets: 4mm, 6mm
• Power 240V, 50Hz, 1-Phase
• Length 540mm
• Width 530mm
• Height 530mm
• Weight (lbs) 75 lbs
• Table Style T-Slot
• Notes: Includes Power Cord, USB 2.0 Cable, Controller, Allen Key_2.5mm & Spare Socket Screw, Silicone Mat, Tungsten Carbide Tool, Clamp set ( big x 2 pcs, small x 2 pcs ), Support Board
