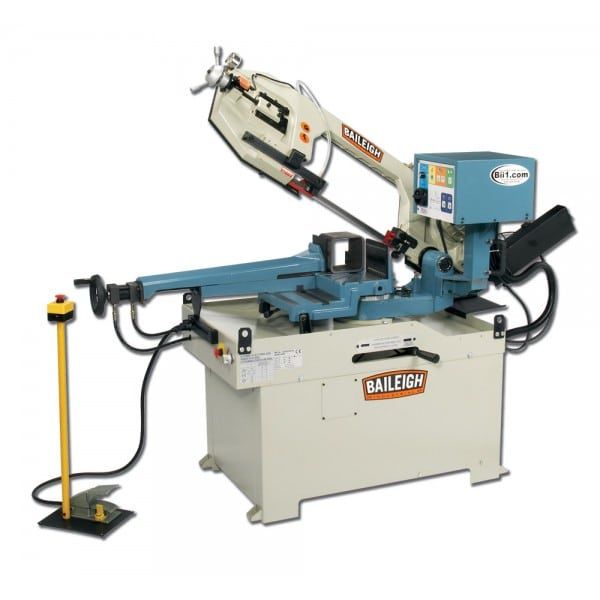

Baileigh BS-350SA Dual Mitering Semi-Automatic Bandsaw 400v

Baileigh BS-350SA Dual Mitering Semi-Automatic Bandsaw 400v

The BS-350SA 400v, 50hz power and has a cutting capacity of 267mm, but the best part of the BS-350SA is that is has a full cast iron head and bow can mitre 60° right and 45° left.

• The BS-350SA blade motor features a 2hp motor which is driven by an AC inverter, built to deliver the reliability that shops demand.
• The best thing about being inverter driven is that you can make speed changes infinitely between 20mpm - 85mpm while the machine is running.
• Being able to change speeds helps improve blade life and give the best possible cut.

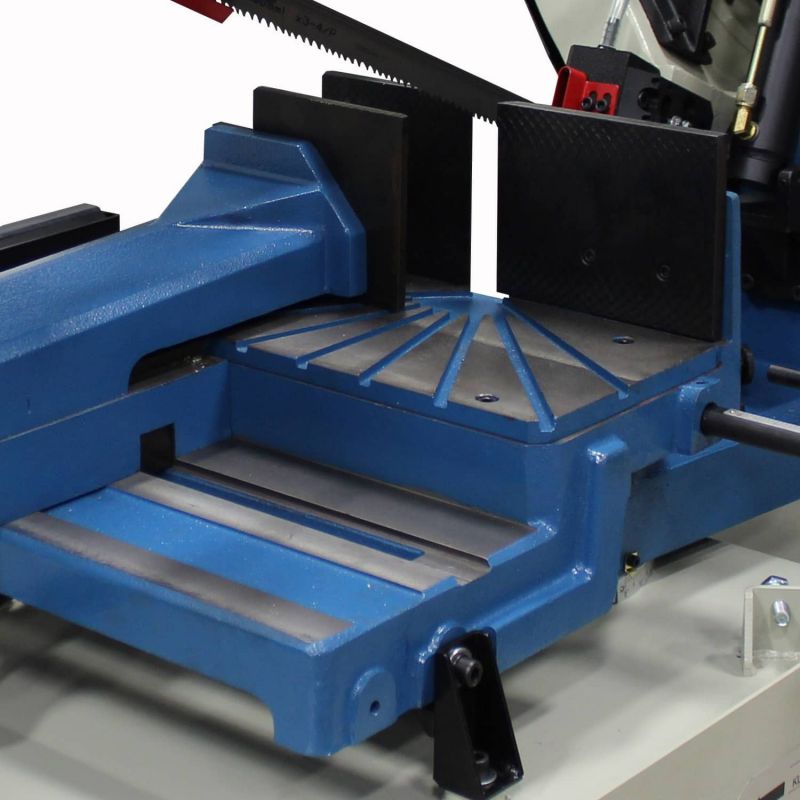

• Other feature of the BS-350SA that help achieve great cuts are full cast iron head and bow that are machined to exacting tolerances, precision ball bearing guides, and a large capacity flood coolant system.
• The BS-350SA uses an industrial grade hydraulic system to power all semi-automatic actions.
• These actions include raising and lowering of the head, as well as clamping and releasing the vice.

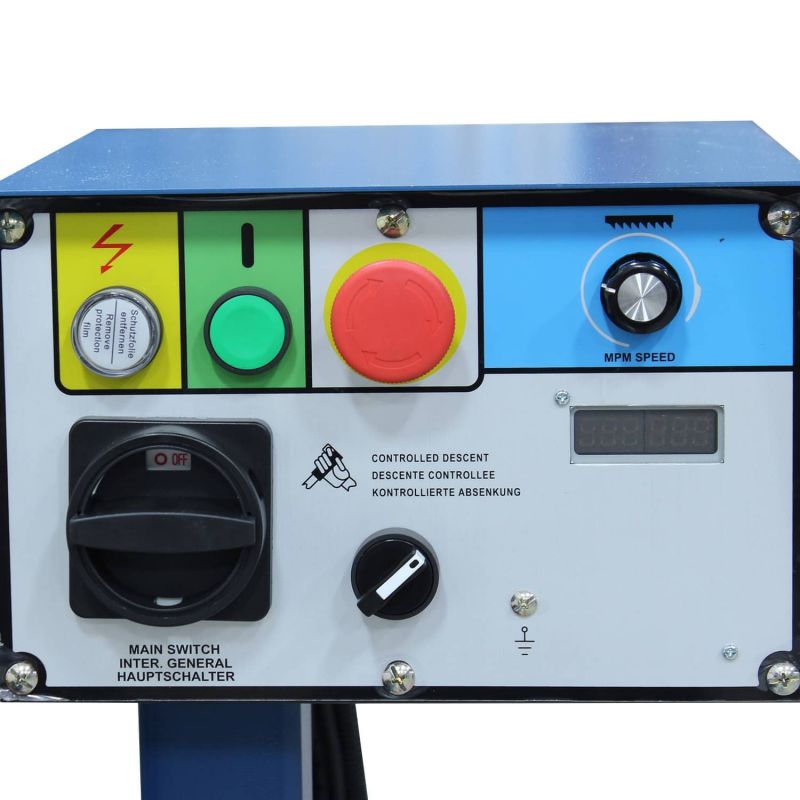

• These actions are initiated with the use of a foot pedal, with settings at the control panel.
• 270mm round capacity
• 0°-45° mitre l, 0°-60° mitre r
• Pressure assist hyd-descent

• Item Number BS-350SA
• Country of Manufacture Taiwan
• Motor Hp 2
• Return Hydraulic
• Miter Adjustment Dual Swivel Head
• Miter Angle 0  60°, 45°L
• Motor High Torque 1.5Kw (AC)
• Capacity Round 90 x 45 x 60 x 45L 270 mm x 240 mm x 160 mm x 210 mm
• Capacity Rectangular 90 x 45 x 45L 350 x 220 x 240 x 160 x 185 x 110 mm
• Capacity Rectangular 90 X 45 X 45L 13.77″ x 8.66″ x 9.45″ x 6.3″ 7.3″ x 4.33″
• Capacity Square 90°/ 45° / 60° 260 mm x 220 mm x 150 mm x 180 mm
• Table Height 889 mm
• Blade Guide Carbide x Roller
• Blade Size (H x W x L) 25 x 1 x 3160 mm
• Blade Speed 20 – 85 mpm
• Descent Control Pressure Assist Hydraulic
• Drive Gear
• Power 400V, 50Hz, 3-Phase
• Shipping Weight 531 kgs.
• Shipping Dimensions (Inches) 1829 x 762 x 1676 mm
• Dimensions L x W x H 1829 x 762 x 1676 mm
