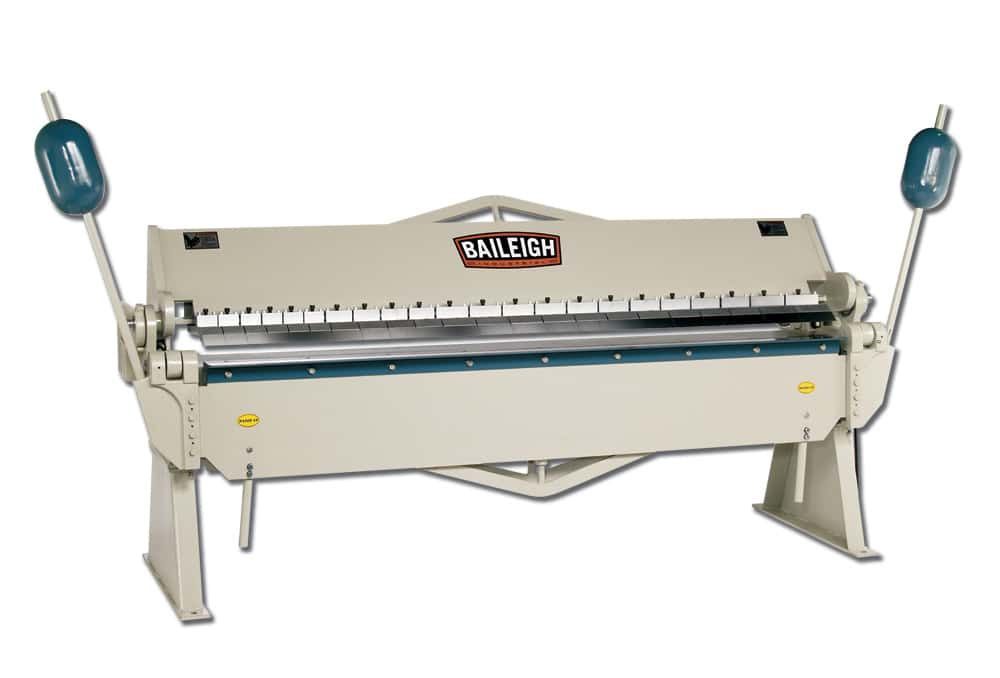

Baileigh BB-9612 Box and Pan Folder 2540mm

Baileigh BB-9612 Box and Pan Folder 2540mm

The BB-9612 box and pan brake has 96" of useful bending width so it can bend a 4' x 8' the long way, up to 12 gauge mild steel, and 16 gauge stainless steel.

• This sheet metal tool has been rigidly built to withstand deflection in the apron area.
• The apron is reinforced with very heavy truss rods coupled to its massive all steel frame that is electro welded to withstand use at maximum capacity for decades of quality bends.
• The heavy framework weighs in at an impressive 3200lbs.
• This sheet metal brake's top apron has a 22 finger assortment of varying sizes to allow the operator to configure almost any box and pan up to a maximum depth of 6".
• The fingers and bending rail are hardened to produce extremely straight and tight bends for years of service, even in stainless steel.
• The bending apron has two massive counterweights to help assist the operator in fatigue free bending, even at maximum capacity.
• Like all Baileigh sheet metal equipment, the BB-9612 comes mounted on a solid floor stand that improves efficiency and reduces operator fatigue.
• When sheet metal bending is required, professionals trust the quality sheet metal machines Baileigh Industrial sell throughout the world.
• Baileigh's BB-9612 is a serious sheet metal forming and bending machine that will offer decades of quality production at a reasonable price.
• This brake is great for bending mild steel, aluminum and stainless steel.
• 2.8mm mild capacity
• 1.6mm stainless capacity
• 2540mm folder length
• 0° – 135° bend angle

• Item Number BB-9612
• Country of Manufacture Taiwan
• Min Reverse Bend 16 mm
• Thickness (SS) 12 ga. (16 ga.)
• Box Depth 152 mm
• Beam Adjustment 25.4 mm.
• Bend Angle 0  135°
• Finger Sizes 3″  4″  5″  6″
• Shipping Weight 1460 kgs.
• Length 2500 mm
• Shipping Dimensions (Inches) 3124 x 864 x 1168 mm
