Baileigh AP-5 Arbor Press

Baileigh AP-5 Arbor Press

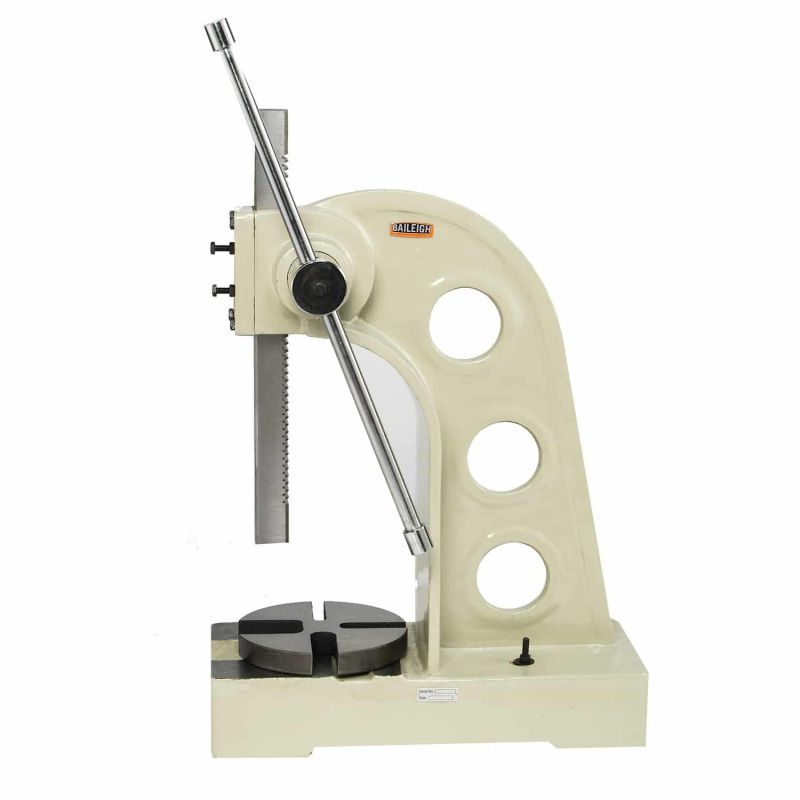

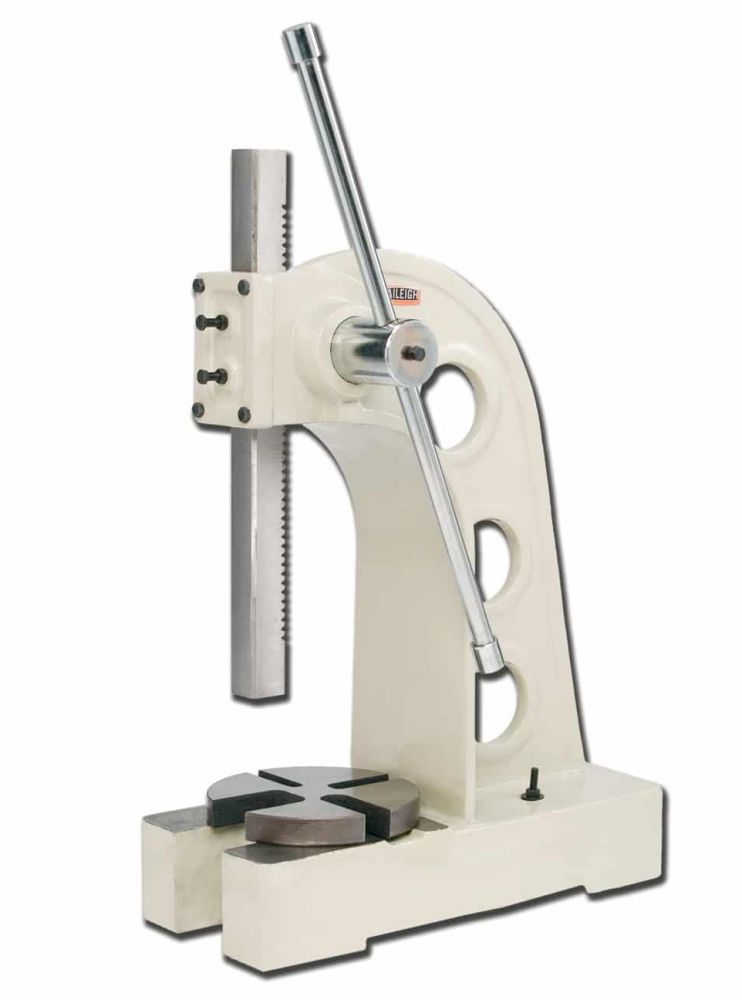

The AP-5 arbor press can produce up to 5.6 tons of force.

• It has a heavy-duty cast iron framework that uses a thick 2" X 2" case hardened ram. This is the perfect tonnage for any fabrication or machine shop for pressing bearings, bushings, or broaching keyways into items as well.
• This 5.6 ton arbor press comes with a heavy-duty 4 position bottom plate that is perfect for various sizes of broaches.
• This plate can also be removed for pressing other items directly on the massive framework.
• Like all Baileigh arbor presses, this one can be pedestal or bench mounted.
• Baileigh arbor presses are built for decades of profitable use.
• Manually operated
• 5 metric tons of pressure

• Item Number AP-5
• Ram Size 50 mm x 50 mm
• Throat Depth 226 mm
• Maximum Material Height 400 mm
• Capacity 5 ton
• Maximum Arbor Height 70 mm
• Power Manual
• Shipping Weight 166 kgs.
• Ram Travel Per Revolution 215mm
• Shipping Dimensions (Inches) 762 x 381 x 953 mm
